Seldicath PTFE Arter Kateter

Teknik Özellik

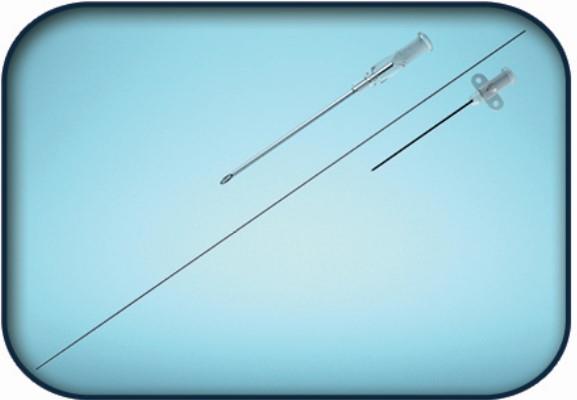

Kit İçeriği:

1 adet introducer iğne
1 adet radyopak PTFE kateter
1 adet esnek guidewire

Kateter			Ürün Kodu	Kılvuz Tel		İğne
Cm	Fr (mm)	Gauge	Düz Kılavuz Tel	0 inch (mm)	Uzunluk (cm)	0 mm (G) – Uzunluk (mm)
2**	2 (0.7)	22 G	3871.07*	.019 (0.48)	22	0.70 mm (22 G)- 19 mm
2**	3 (1.0)	20 G	3871.10*	.019 (0.48)	22	0.88 mm (20 G)- 28 mm
3**	2 (0.7)	22 G	3872.07*	.019 (0.48)	22	0.70 mm (22 G)- 19 mm
4	3 (1.0)	20 G	3872.10*	.019 (0.48)	22	0.88 mm (20 G)- 28 mm
4	4 (1.3)	18 G	3872.13*	.024 (0.61)	22	1.07 mm (19 G)- 38 mm
6	3 (1.0)	20 G	3873.10*	.019 (0.48)	22	0.88 mm (20 G)- 28 mm
6	4 (1.3)	18 G	3873.13*	.024 (0.61)	22	1.07 mm (19 G)- 38 mm
8	3 (1.0)	20 G	3874.10	.019 (0.48)	30	0.88 mm (20 G)- 55 mm
	4 (1.3)	18 G	3874.13	.024 (0.61)	22	1.07 mm (19 G)- 55 mm
	5 (1.7)	16 G	3874.17	.035 (0.89)	30	1.24 mm (18 G)- 55 mm
11	3 (1.0)	20 G	3876.10	.019 (0.48)	30	0.88 mm (20 G)- 55 mm
	4 (1.3)	18 G	3876.13	.024 (0.61)	30	1.07 mm (19 G)- 55 mm
	5 (1.7)	16 G	3876.17	.035 (0.89)	30	1.24 mm (18 G)- 55 mm
	6 (2.0)	14 G	3876.20	.045 (0.14)	30	1.62 mm (16 G)- 50 mm
15	3 (1.0)	20 G	3881.10*	.019 (0.48)	30	0.88 mm (20 G)- 28 mm
15	4 (1.3)	18 G	3881.13*	.024 (0.61)	30	1.07 mm (19 G)- 38 mm
20	3 (1.0)	20 G	3882.10	.019 (0.48)	44	0.88 mm (20 G)- 50 mm
	4 (1.3)	18 G	3882.13	.024 (0.61)	44	1.07 mm (19 G)- 70 mm
	5 (1.7)	16 G	3882.17	.035 (0.89)	44	1.24 mm (18 G)- 70 mm
	6 (2.0)	14 G	3882.20	.045 (1.14)	44	1.62 mm (16 G)- 75 mm
30	3 (1.0)	20 G	3883.10	.019 (0.48)	44	0.88 mm (20 G)- 50 mm
	4 (1.3)	18 G	3883.13	.024 (0.61)	44	1.07 mm (19 G)- 70 mm
	5 (1.7)	16 G	3883.17	.035 (0.89)	44	1.24 mm (18 G)- 70 mm
	6 (2.0)	14 G	3883.20	.045 (1.14)	44	1.62 mm (16 G)- 75 mm
				* Hem pediatrik hem yetişkindir ** Neonatal
